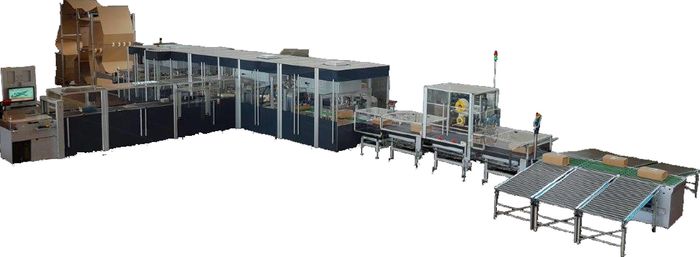

CMC CartonWrap automated packaging system dynamically creates ready-to-ship

boxes for the e-commerce fulfilment market.

The system produces 1.000 custom boxes per hour for single and multi-line orders using continuous fanfold corrugate.

This integrated solution is designed to help e-commerce and logistics companies improve productivity while optimising labour and shipping costs.

CMC CartonWrap measures and then automatically forms a perfect size box around

each order. This eliminates the need for void fillers and large amounts of different size boxes normally used.

Product dimensions scanned in the induct are used to feed the precise length of material required for the box from fanfold feeder.



The corrugated cardboard is processed by the creasing and dynamic cutting system

creating a blank to be formed. The creasing and trimming system is controlled by multiaxes servo system that allows for both high precision and high speed.

Box is then formed, product inserted and panels sealed with low impact hot melt glue.

Prior to closing the upper flaps, it is possible to add additional documents, such as marketing materials, invoices, return instructions, etc. thanks to CMC’s best in class rotary feeders technology.

System can be expanded to add CMC Packvertizing print system for logos, trademarks or any other information directly to the box, further allowing each box to be unique and enhancing the customer experience.
