About RESCLITE PRO
Safety lighting has to take over essential tasks in an emergency. It illuminates escape routes, prevents panic and ensures that fire extinguishers and other safety equipment can be found immediately. The RESCLITE PRO product family offers various optics, lenses and light distributions for safety lighting.
RESCLITE PRO safety luminaires reliably guarantee that escape routes, obstructions and auxiliary equipment can be seen in an emergency. To make sure they are seen as quickly as possible, the Boost Start function helps the human eye adapt more quickly to poorer lighting conditions. In order to do this, the luminaires provide their maximum light level in the initial (and thus crucial) seconds.
RESCLITE PRO Escape: In the event of an emergency, people should be evacuated from a building as quickly and as safely as possible. Perfect illumination of escape routes is therefore vital. RESCLITE PRO escape covers long corridors with few light points and even illuminates high rooms with ceilings of up to 27 metres (escape HC). If required, innovative optics enable the latest generation to guide the light around the corner (escape 90°) or from the wall to the floor (escape wall).
RESCLITE PRO Antipanic: Flat illumination provides orientation in the room and helps minimise panic. Thanks to the rectangular light distribution of RESCLITE PRO antipanic, lighting design is child’s play and the room is perfectly lit – right into the corners. The high-performance version (HP) supports higher illuminance levels or wider spacings between two luminaires, enabling large areas to be illuminated with a small number of luminaires.
RESCLITE PRO Spot: First-aid boxes, fire extinguishers and alarm stations require special attention. All safety-critical objects in a building must be illuminated with at least 5 lux in accordance with EN 1838 – vertically measured on the wall. RESCLITE PRO spot meets this requirement with advanced lens technology that cleverly incorporates a wallwasher function. Compared to a conventional downwards-emitting emergency luminaire, this solution can achieve up to three times higher illuminance levels on a specific object.
RESCLITE PRO RECESSED MINI: An extremely miniaturised form helps the mini variant practically disappear into the ceiling. The luminaire can therefore be seamlessly integrated into even the most demanding architectural projects – while still offering maximum safety. With an outer diameter of only 50 mm, the inconspicuous ring encloses a powerful LED module that uses unobtrusive lenses for various emergency lighting tasks.

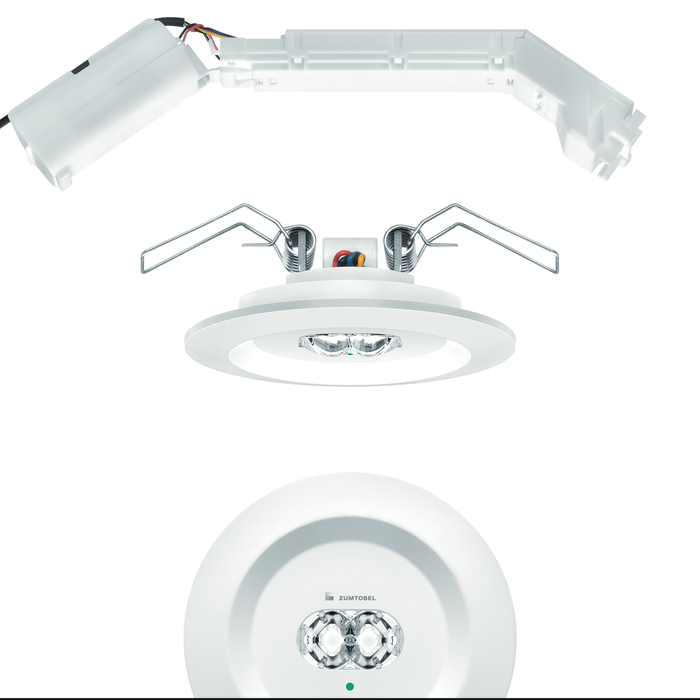

RESCLITE PRO RECESSED: With a diameter of 85 mm, RESCLITE PRO is designed for a standard ceiling cut-out of 68 mm – from a minimum suspended ceiling height of 100 mm. For the ceiling height, 100 mm is already sufficient. Thanks to the flexibly mounted battery pack, the fitting can be pushed easily up into a false ceiling. And the wiring is just as simple, as the terminal allows through-wiring for up to five wires with a diameter of 2.5 mm2.
RESCLITE PRO SURFACE-MOUNTED IP40: Surface-mounted versions of RESCLITE PRO can be mounted on the ceiling just as easily as on the wall. Once the base plate is screwed on, the die-cast aluminium lid is simply clicked on – without the need for any tools. The wiring can be inserted from the back or from the side of the fitting. The lens escape wall even makes it possible to achieve the perfect illumination of staircases with an attractive appearance.
RESCLITE PRO SURFACE-MOUNTED IP65: This IP65-protected safety luminaire is optimally protected against dust and water. A special valve also prevents the formation of condensation. This makes RESCLITE PRO suitable for the most demanding surroundings, like those found in industry. In addition, flexible wiring from the back or side of the solution supports easy installation.
RESCLITE PRO TECTON: Thanks to a handy side lever, RESCLITE PRO can be integrated into the TECTON rail in just a few seconds and without any tools. The light points thereby form an optical unit with the trunking. Simple rotation enables flexible alignment of the light heads, so even transverse escape routes or laterally arranged objects can be illuminated in a targeted manner in a few simple steps. For demanding industrial applications and harsh environments, there is the TECTON continuous-row lighting system and its safety luminaires with higher IP degrees of protection.
RESCLITE PRO TRINOS: RESCLITE PRO and the TRINOS IP65 protected continuous-row system form a hardy and versatile partnership for industrial applications. Safety luminaires are available in all supply variants with a single battery and for central batteries, as well as with a range of optics: antipanic, spot, escape high ceilings and antipanic high ceilings.
RESCLITE PROtect Surface Mounted Luminaire (Wall): The escape route ends at the outside assembly point – not at the outer door. That's why RESCLITE PROtect reliably illuminates the path in the outdoor area according to the relevant standards. With a highly robust, IP65-protected aluminium housing and a heated battery, even the self-contained version can withstand temperatures as low as –20 °C. Optics such as escape wall, escape beam and anti-panic enable this wall-mounted luminaire to consistently offer the right solution.
RESCLITE PROtect Surface Mounted Luminaire (Ceiling): RESCLITE PROtect is ideal for demanding industrial applications – even when central power-supply temperatures are as low as –30 °C. Thanks to battery heating, a self-contained luminaire can withstand temperatures as low as –20 °C, while an IP65 valve prevents any condensation forming inside the housing. With its escape, anti-panic and anti-panic high ceilings optics, the ceiling luminaire offers the range of light distributions needed to perfectly meet the safety requirements of every building.
RESCLITE PRO combines performance with minimalist design. With a choice of white, silver or black finishes, the installed fitting is barely visible. Even the escape lens now works without a reflector. Inspired by the design flexibility of the TECTON and TRINOS continuous-row lighting systems, RESCLITE PRO offers rotatable light heads that can be aligned individually, ensuring perfect integration.
Equipped with special lens technology developed by Zumtobel experts, RESCLITE PRO is ready for every requirement and every room type. Escape routes are illuminated both in a straight line and perfectly around corners. The square light distribution of the anti-panic lighting spreads the light evenly in corners, while RESCLITE PRO spot with a wallwasher function precisely highlights essential areas and objects.
The RESCLITE PRO range has the right solution for every room situation – from recessed and surface-mounted luminaires for ceilings and walls to miniaturised and IP-protected versions, right through to dedicated luminaires for continuous-row systems. In addition, RESCLITE PRO always impresses with simple assembly that can mostly be completed without tools.
Innovative PROset technology enables non-contact addressing, configuration and maintenance of emergency lighting. This means that each luminaire can be programmed via the PROset Pen or with the PROset app via a smartphone.
A high number of light points is required if the emergency lighting is implemented via the general lighting. RESCLITE PRO covers all tasks with significantly fewer luminaires. For this purpose, RESCLITE PRO combines emergency-light-emitting radiance features with high illuminance and high light quality. A smaller number of luminaires means enormously reduced effort on all levels. This makes planning, installation and commissioning much quicker and easier, while maintenance requirements are also minimised. RESCLITE PRO impresses in operation with reduced battery capacity and energy-efficient LED spots that require less than 5 watts of power, helping to cut costs even further.
When it comes to human life, fail-safe performance is essential. Safety lighting must work – at all times and reliably. It must comply exactly with standards to ensure continued safety if damage occurs. That's why each individual luminaire is inspected thoroughly at Zumtobel, and certified by independent authorities. The aim is to ensure long-term, fault-free operation with minimum maintenance, under the wide-reaching Zumtobel guarantee.
